Series of 2LQFW、4LQFW

Oil-water coolers of GLC-A Type、GLC Type、GLL Type、2LQFW Type、2LQFL Type、2LQF1W Type、2LQF2W Type、4LQF3 Type、2LQF2W Type、LC Type LQG marine cooler , BR plate heat exchanger. KL ,FL air-cooler which takes air as cooling medium and hydraulic oil ,lub oil ,fresh water,other mediums for cooling or heating to stated temperature.

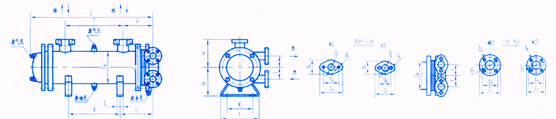

Cooler shape and size drawings of 2LQFW

Cooler shape and size drawings

Cooler shape and size drawings of 4LQFW

Old Model	New Model	Change the hot area /m2	L/mm	T/mm	A/mm	Have no to lie the quality quantity /kg	Capacity
Old Model	New Model	Change the hot area /m2	L/mm	T/mm	A/mm	Have no to lie the quality quantity /kg	Tube /L	Tube /L
4LQF3W-A315F	4LQF3W-A1.3F	1.3	490	205	≤105	49	4.8	3.8
4LQF3W-A400F	4LQF3W-A1.7F	1.7	575	290	≤190	53	5.6	4.8
4LQF3W-A500F	4LQF3W-A2.1F	2.1	675	390	≤290	59	6.5	6
4LQF3W-A630F	4LQF3W-A2.6F	2.6	805	520	≤420	66	7.7	7.6
4LQF3W-A800F	4LQF3W-A3.4F	3.4	975	690	≤590	75	9.3	9.7
4LQF3W-A1000F	4LQF3W-A4.2F	4.2	1175	890	≤790	86	11.1	12.1
4LQF3W-A1250F	4LQF3W-A5.3F	5.3	1425	1140	≤1040	99	13.4	15.1

Oil discharge /(L/min)	Hot discharge ф/W							Oil-side pressure fall /MPa
58	12900	15600	18500	21300	24000	26800	29000	≤0.1
66	14700	18000	21000	24400	27500	30500	33000
75	16500	20000	23700	23300	30800	34500	37400
83	17600	22400	25600	29500	33500	37500	41500	0.11-0.15
92	19300	24500	28000	31500	36000	40500	44500
100	21100	25000	29500	34500	39400	44000	48500
108	21800	27000	31000	36300	41500	46500	51500
116	23500	27500	33500	39000	43500	50000	55500	0.15-0.2
125	24000	28500	36000	40500	45500	52500	58500
132	24500	29000	36500	42000	48500	55000	61000
150	25500	31500	38500	46000	53000	60000	66000	0.2-0.3
166	27000	35000	41000	49000	57000	65000	73000
184	30000	36000	44000	50000	59000	69000	77000
200	32000	38000	46000	55000	65000	75000	84000
Change the hot area /m 2	A1.3F	A1.7F	A2.1F	A2.6F	A3.4F	A4.2F	A5.3F
Model	4LQF3W
